Needle Valve

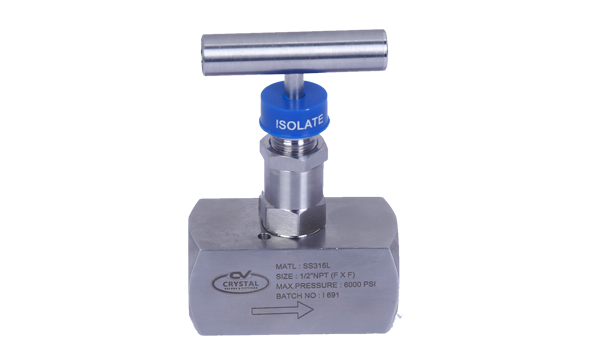

Needle Valve (Hard Seat)

Overview

With threaded horizontal port inlet, outlet and vent/test connection on the left hand side. The venting bonnet is positioned on the top and the isolating bonnet on the front

Applications

High pressure line shut off.
Drain valve.
Instrument isolation.
Liquid and vapor service

Technical Specificatons

Design Pressure	6000 PSI
Max temp.	240 °C
Material	Stainless Steel
Stem	(Type CT) Conical tip press fitted hard chrome plated
Gland Packing	PTFE
Stem packing area	Burnished finish for Smooth valve operation.
Safety Feature	Back seating for preventing stem blowout
